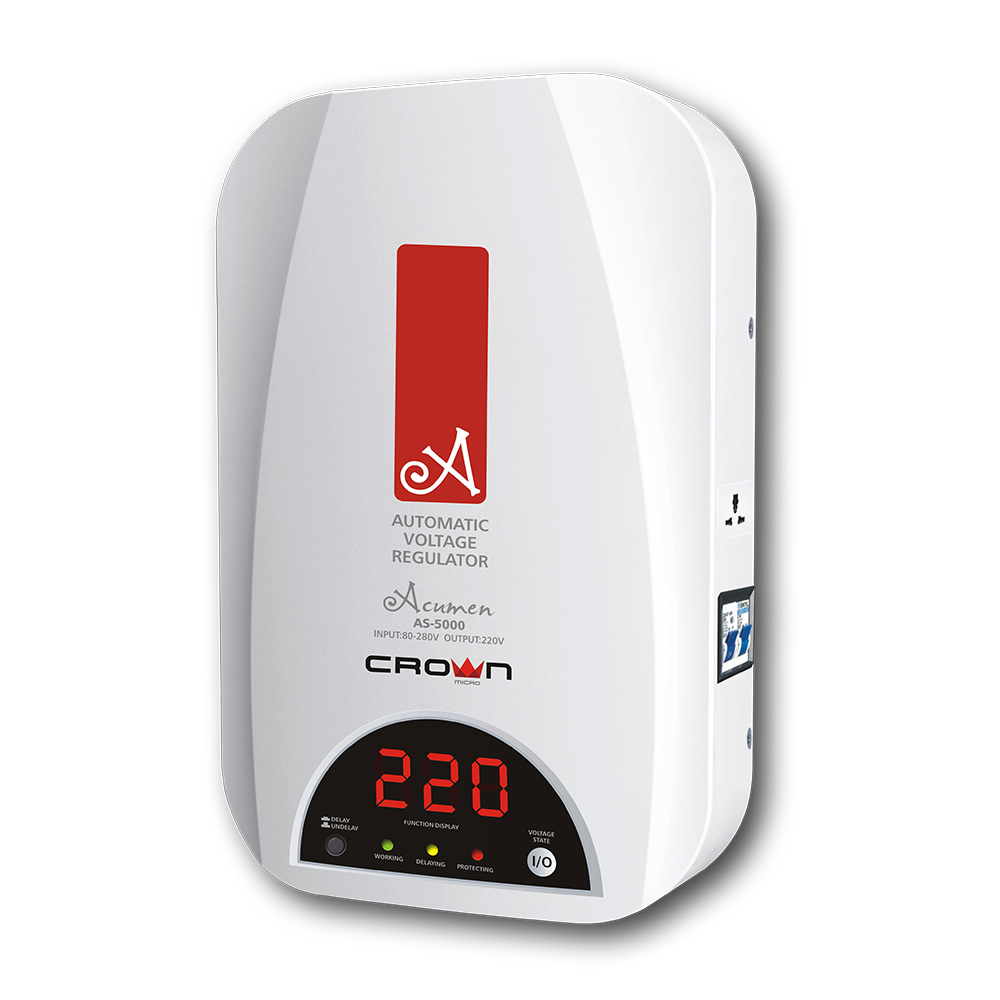

AS-5000

CROWN AVR stabilizers have a high load capacity with minimal noise level that allows them to exploit the protected variety of techniques in a low quality input mains voltage. The ability to mount on the wall extends beyond the use of this series of stabilizers

Features:

Microprocessor control - high reliability guarantee
Toroidal transformer
Wide input voltage range adjustment
It provides stable output voltage
Protection against short-circuit, over voltage, over temperature, overload and other interference in the input power supply combined with automatic power switch and fuse
Select the switching delay time function
Suitable for all kinds of home appliances sensitive to voltage surges
Different arrangement of outlets for ease of use
Availability of digital display and LED indication
Compact size, light weight, low noise
Can be mounted on the wall

Where to buy

Warranty 12 месяцев

Where to buy

Service centers

Delivery

Technology

type stabilizer

with toroidal transformer

execution

Form Factor

Suspended (wall mount)

Capacity

Power

5000 VA / 4000 W

Input parameters

Frequency	50/60 Hz (auto sensing)
Voltage	220/230
The range of voltage regulation	80 - 280 (range selection)
Power consumption	less than 10 W

Output parameters

Voltage	220/230
Stabilization of the output voltage	± 10%
Efficiency	0,8
Output sockets	4 x Euro with redundant power and filtration

Protection

Output overload	Yes
Short circuit	Yes
Surge Protection	Yes
Set the time delay	3 sec.

Physical parameters

Indication	LCD-display (input and output voltage) and LED (mains operation, the AVR indicator delay setting mode, fault indicator)
W x D x H (mm)	-
Net Weight, weight (kg)	-

Case features

Material

Plastic

Electrical connection to the front

Power cable

Removable c EURO plug (length 1.2 m)

Environmental Parameters

Temperature

0 - 40 ∞ C

Humidity

0% ~ 95% (non-condensing)
