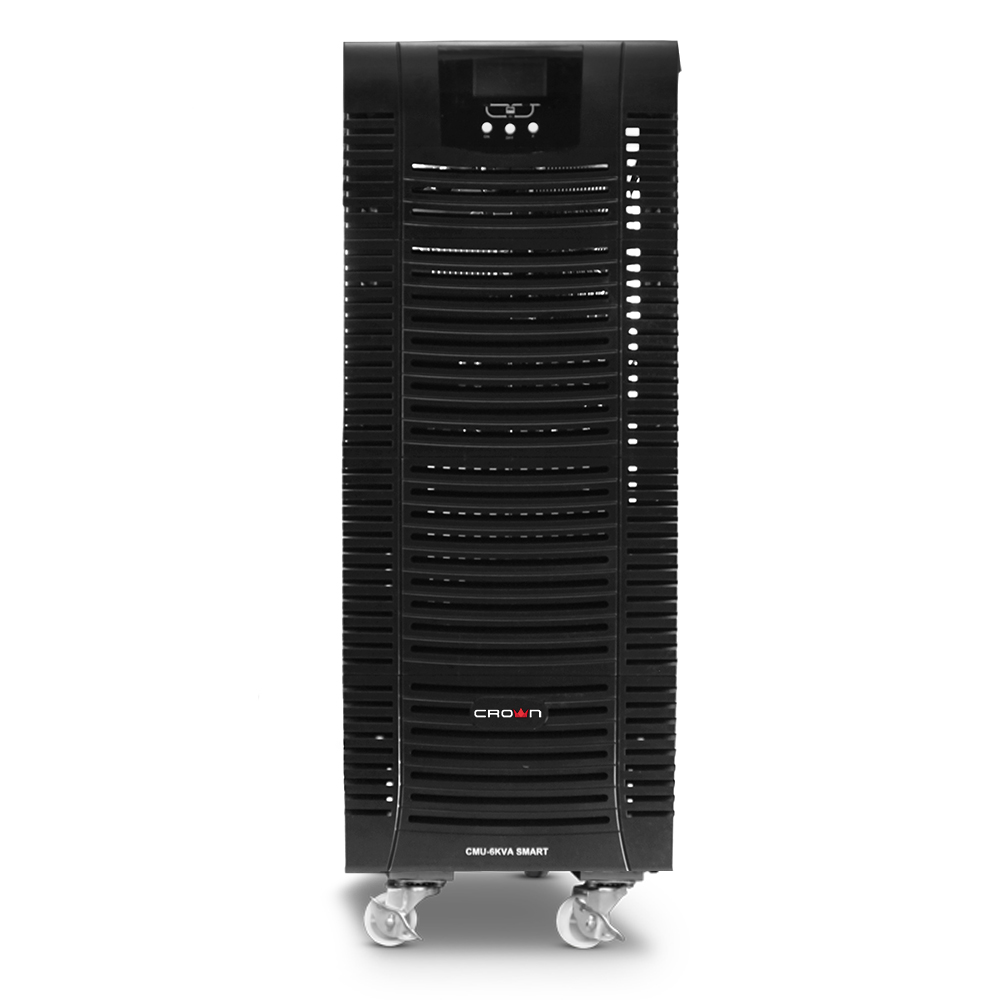

CMU-6KVA SMART

The online UPS with double-conversion.

Features:

LCD display shows all the necessary information about the status of the UPS and power supply: battery level, voltage, malfunctions in the power supply .
All models come with automatic voltage regulation - AVR. This technological solution extends equipment life by aligning the input voltage.
Power 4200Vatt.
Instructions and software in Russian.
All UPS CROWN used proprietary, sealed, maintenance-free, oxide batteries CROWN. The batteries are characterized by their superior quality, which achieves a high term of service. 12V / 7AH - 20 pcs .
UPS coating. Cases of all models painted with scratch-resistant paint, "Moire", a special dye is pleasant to the touch and allows you to store presentation UPS.
UPS Smart UPS refers to the group - Smart equipment spread spectrum challenges and opportunities.

Where to buy

Warranty 12 months

Where to buy

Service centers

Delivery

SMART UPS Pro

It is a line of high-performance uninterruptible power supplies for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications.

Technology "on-line"

The series models SMART UPS Pro technology used "on-line" double conversion, guaranteeing a tough stabilization of voltage and frequency, time zero load switch to battery power.

Additionally:

Technology - On-Line; (Continuous - online double conversion);
Pure sine wave output with zero transfer time of backup;
Fully microprocessor control;
High-quality noise filtering;
Automatic and safe shutdown of the operating system;
Remote control / monitoring via the panel board relays, and RS-232 communication interface.

Acquire

To purchase this product and delivery methods
contact your sales specialist.
Rely on professionals!

Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

Technology

UPS Type

On-line

Execution

Form Factor

Tower

Number of phases

Specification

1 phase input to ground with ground and 1-phase output from the ground

Input parameters

Power	6000VA / 4200W
Input voltage	220/230/240
Input voltage range	176 - 276 V
Current frequency	40 -70 Hz (auto sensing)
Phases	one phase grounding

Output parameters

Output voltage	220/230/240 V ± 1%
Form voltage	pure sine wave
Current frequency	50/60 Hz ± 1%
Automatic voltage regulation (AVR)	Yes
Switching time	0 ms
Power factor correction	0,8
Harmonic voltage fluctuations	<3% (linear load) and <5% (with a non-linear load)
Crest factor	3:1

Protection and UPS equipment

Surge Protection	Yes
Overload protection	Yes
UPS Login	Circuit breaker
Short circuit	Immediate load shedding or tripping of upstream circuit breaker
Protect the phone, fax, modem, LAN	1 ı RJ-11/45

Ports and interfaces

Dry contacts	No
USB-port	No
RS-232	Determination of low battery, control schedule power on / off the UPS, monitoring of input and output voltages
Port emergency shutdown EPO	No
SNMP	Built-in expansion slot for SNMP adapter
Connections of the generator input	No
Parallel UPS connection	Yes

Battery

A type	Lead-acid, sealed, maintenance-free
Voltage and battery capacity	12V / 7AH x 20
Typical recharge time	12 hours (up to 90% of full battery capacity)
Charging Current (Max)	3A
Estimated battery backup time (at 50% load)	-
Estimated battery backup time (at 100% load)	-
Hot-swappable batteries	No
Connecting additional battery cabinets	Yes
Cold start	Yes
Battery protection	Automatic diagnostics, protection against overcharge and short-circuit

Physical parameters

Output connectors	1 ı Terminal block (1Ph+N+GND) with redundant power and filtration
Dimensions (W * D * B) mm	260570717 mm
Weight, kg	74 kg
Indication	LCD-display (input and output voltage, current, frequency, battery charge level, load level
Sound alarm	Beep in battery mode, when the battery is low, overload and fault charger

Case features

Material

Metal (0.5 mm)

Environmental Parameters

Acoustic noise	<50 dB (at 1 meter from surface)
Working conditions	Humidity 0 ~ 95% non-condensing, temperature 0 ~ 40? C

Guarantee

Standard warranty

1 year
