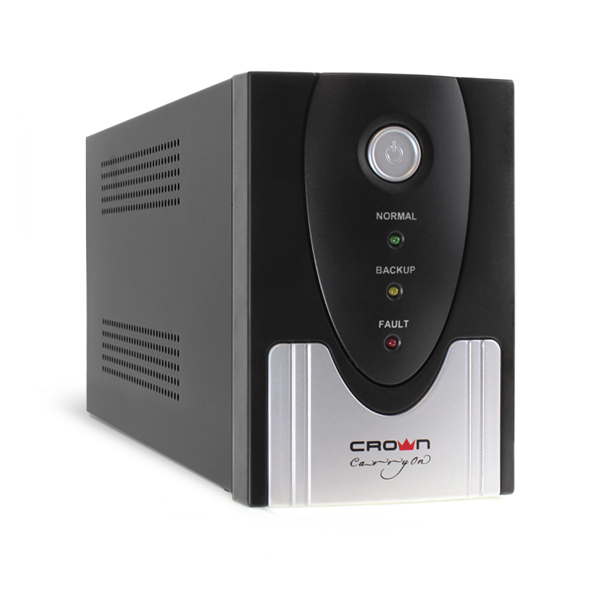

new CMU-SP800 COMBO smart

Stylish, reliable, efficient - the CROWN UPS - is a guarantee of stable and long-term operation of your equipment.

Features:

The metal case;
LED and audible status indication;
AVR stabilizer;
Short-circuit protection;
The overload protection;
Protection against full battery discharge;
Protection of telephone and Internet lines;
voltage filter;
Starting the UPS during a power failure;
Removable power cable is 1.2m.

Where to buy

Warranty 12 months

Where to buy

Service centers

Delivery

Acquire

To purchase this product and delivery methods
contact your sales specialist.
Rely on professionals!

Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

Technology

UPS Type

Off-Line

execution

Form Factor

Tower

Input parameters

Power	800 VA
Input voltage	220/230 / 240V
Input voltage range	140 - 290 V
Current frequency	50/60 Hz ± 1% (auto sensing)

Output parameters

Output voltage	220 / 230V ± 10%
Form voltage	Stepped approximation to a sinewave
Current frequency	50/60 Hz ± 1%
switching time	2-4 ms, including the determination of the time
Automatic voltage regulation (AVR)	1 step down, two steps up

Protection and UPS equipment

Surge Protection	Yes
UPS protection against overloads	Load ? 120% of the sound signal;†
	120%, the output power is automatically turned off, the speaker begins to beep continuously
Protection for UPS input	Fuse for overload protection and short circuit protection
UPS protection for short circuit	Immediate shutdown of the UPS using the input fuse
Protect the phone, fax, modem, LAN	1 x RJ45 and 1 x RJ11

Ports and interfaces

USB-port	Indication of low battery power, the voltage at the input / output load power management on / off UPS
SNMP-card	no

Battery

A type	Lead acid, sealed, maintenance-free
Voltage and battery capacity	12V9AH x 1
Typical recharge time	4 hours (up to full capacity of the battery)
Connecting additional battery	no
Cold start	Yes
battery protection	Automatic verification of the battery and when the protection of the critical category

Physical parameters

Output connectors	2 x 2 x Euro and IEC-320 C13 with redundant power and filtration
UPS Dimensions (W * D * B) mm	122x341x195
Packing dimensions (W * D * B) mm	163x475x230
Weight, kg	6
Gross Weight, kg	7
Indication	LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
Sound alarm	Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds);†low battery level - sound beeps (last 16 seconds);†overload - a very special sound signal (every 2 seconds);

Case features

material

Metal (0.5 mm)

Electrical connection to the front

Power cable

Metal (0.5 mm)

Environmental Parameters

Acoustic noise	Removable c EURO plug (length 1.2 m)
Working conditions	<40 dB (1 meter from the surface)

Guarantee

standard warranty

Humidity 0% to 90% non-condensing, temperature: 0 ~ 40 ?C

1 year
