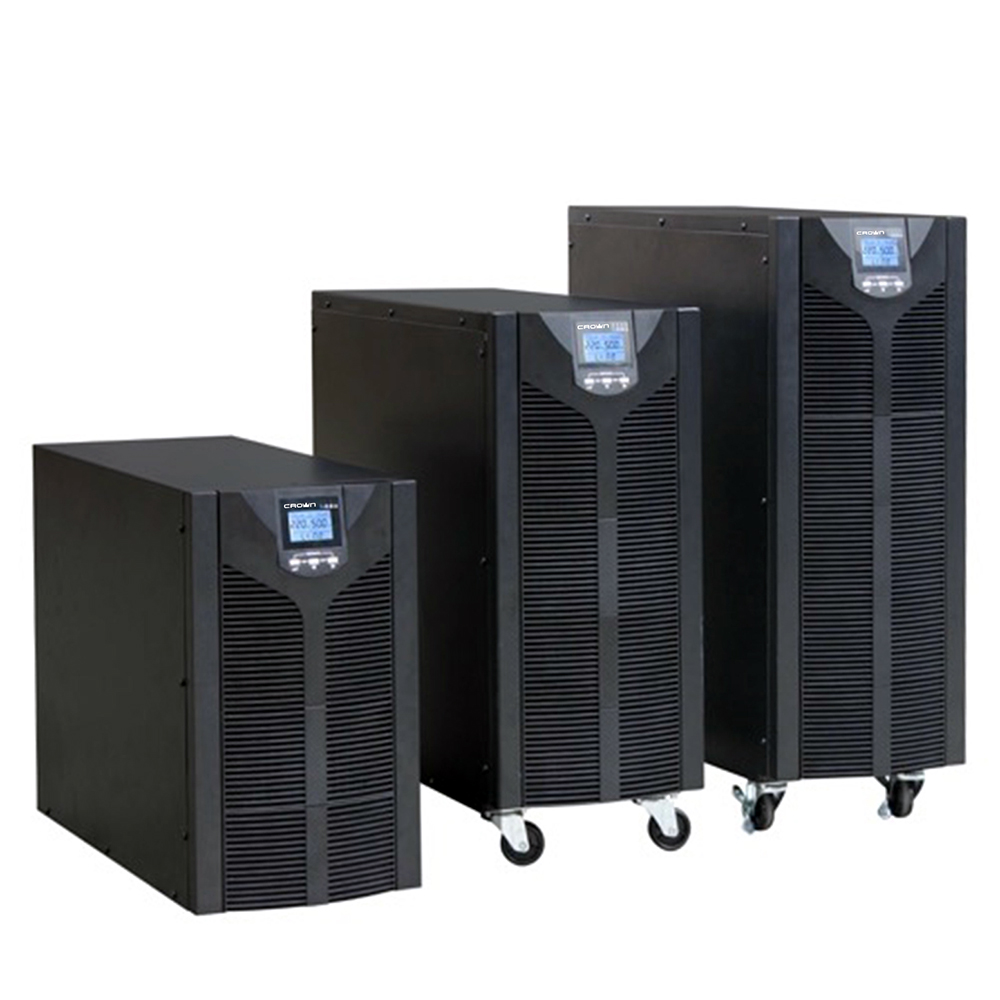

new CMUS - 9020

This UPS series is designed for places where the three-phase input and single phase output, thereby providing centralized protection for various critical equipment with capacity up to 30kVA.†UPS system with three phase input and single-phase output allows you to load more evenly industrial network, using all three phases.

Features:

LCD-display
Pure sine output
Case type (TOWER)
UPS On-line class
PF - 0.9
On Self Test
Cold start
Microprocessor control
Wide input voltage range
We solve the adaptation to the current frequency
Convection mode current frequencies
Adjustable battery charge current
The presence of EPO plugs for quick emergency power off
Availability management ports: USB, RS-232, SNMP
Protection against short-circuit, overload and other interference in the input power
Connecting additional battery cabinets
A parallel operation function

Where to buy

Warranty 12 months

Where to buy

Service centers

Delivery

Main advantages:

The best of the best. UPS SMART UPS Pro not only have the best characteristics of the UPS UPS in its class, but also the best performance.

The price and quality. Through years of experience manufacturing UPS, the CROWN company uses a special power components assembly technology, which allows to optimize production processes and to create On-Line UPS UPS with double-conversion maximum performance at an affordable price. Multi-level quality control system allows the company to produce equipment at international standards.

Additionally!

Technology - On-Line; (Continuous - online double conversion) .
Pure sine wave output with zero transfer time of backup.
Fully microprocessor control.
High-quality filtering pomex.
Automatic and safe shutdown of the operating system.
Remote control / monitoring via the panel board RS-232 and USB relays and communication interface.
The use of external battery packs to increase the backup time.

Monitoring and management:

The basis CMUS - SMART 9020 is "intelligent" control logic is controlled by a microprocessor. All functions are performed by a microprocessor, which controls and maintains the special operating conditions in memory.
On the back of the UPS UPS is RS232 port through which the remote control operation and / or transmission of logic signals to computers equipped with special equipment and software. This allows real time control of operating parameters and any anomaly (failure) in.
Software: with it you can access to all production data CMUS - 9020 SMART. It also allows you to configure special features, as well as manage the shutdown of Windows and Linux operating systems.

The software allows:

Monitor the status of the UPS UPS (input and output characteristics of the battery condition, the overall experience in working / off / emergency modes, temperature).
Conduct UPS configuration UPS (output characteristics, module redundancy N + x, battery, bypass, neutral sensor, the current time).
View events that are in the memory of the UPS UPS, for example, the completion of battery life, overheating alarm, etc. with the time and date.
Perform programming UPS UPS (on / off setting).
Conduct testing UPS UPS (display, batteries).

Acquire

To purchase this product and delivery methods
contact your sales specialist.
Rely on professionals!

Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

Technology

UPS Type

On-line

Execution

Form Factor

Tower

Number of phases

Specification

3 phase input to ground and 3-phase input with ground

Input parameters

Power	20.0 kW / 18.0 kW
Input voltage	380/400/415 V
Input voltage range	242 - 520
Current frequency	40 - 70 Hz (auto-sensing)

Output parameters

Output voltage	380/400/415 V ± 1%
Form voltage	pure sine wave
Current frequency	50/60 Hz ± 0,5%
Automatic voltage regulation (AVR)	Yes
Switching time	0 ms
Power factor correction	0,98
Harmonic voltage fluctuations	<1% (linear load) and <3% (with a non-linear load)
Crest factor	3:1

Protection and UPS equipment

Surge Protection	Yes
Overload protection	Yes
UPS Login	Circuit breaker
Short circuit	Immediate load shedding or tripping of upstream circuit breaker
Protect the phone, fax, modem, LAN	No

Ports and interfaces

Dry contacts	Yes
USB-port	Determination of low battery, control schedule power on / off the UPS, monitoring of input and output voltages
RS-232	Determination of low battery, control schedule power on / off the UPS, monitoring of input and output voltages
RS-485	Yes
Port emergency shutdown EPO	Yes
SNMP	Built-in expansion slot for SNMP adapter
Connections of the generator input	Optionally
Parallel UPS connection	Optionally

Battery

A type	Lead-acid, sealed, maintenance-free
Voltage and battery capacity	12V / 9AH x 64
Typical recharge time	9:00 (up to 90% of full battery capacity)
Charging Current (Max)	1,0 - 12,0 A
Estimated battery backup time (at 50% load)	-
Estimated battery backup time (at 100% load)	-
Hot-swappable batteries	No
Connecting additional battery cabinets	Yes
Cold start	Yes
Battery protection	Automatic diagnostics, protection against overcharge and short-circuit

Physical parameters

Output connectors	3Ph + N + GND terminal block input, 3Ph + N + GND terminal block to the output connector for ext.†battery cabinets
Dimensions (W * D * B) mm	600x800x1360
Weight, kg	205.0
Indication	LED and LCD-display (input / output voltage, frequency input / output voltage Operating modes: normal, bypass, battery power, battery level, load level)
Sound alarm	Beep in battery mode, when the battery is low, overload and fault charger

—ase features

meterial	Metal
Protection class	IP20

Environmental Parameters

Acoustic noise	<60 dB (at 1 meter from surface)
Working conditions	Humidity 0 ~ 95% non-condensing, temperature 0 ~ 40? C

Guarantee

Standard warranty

1 year
