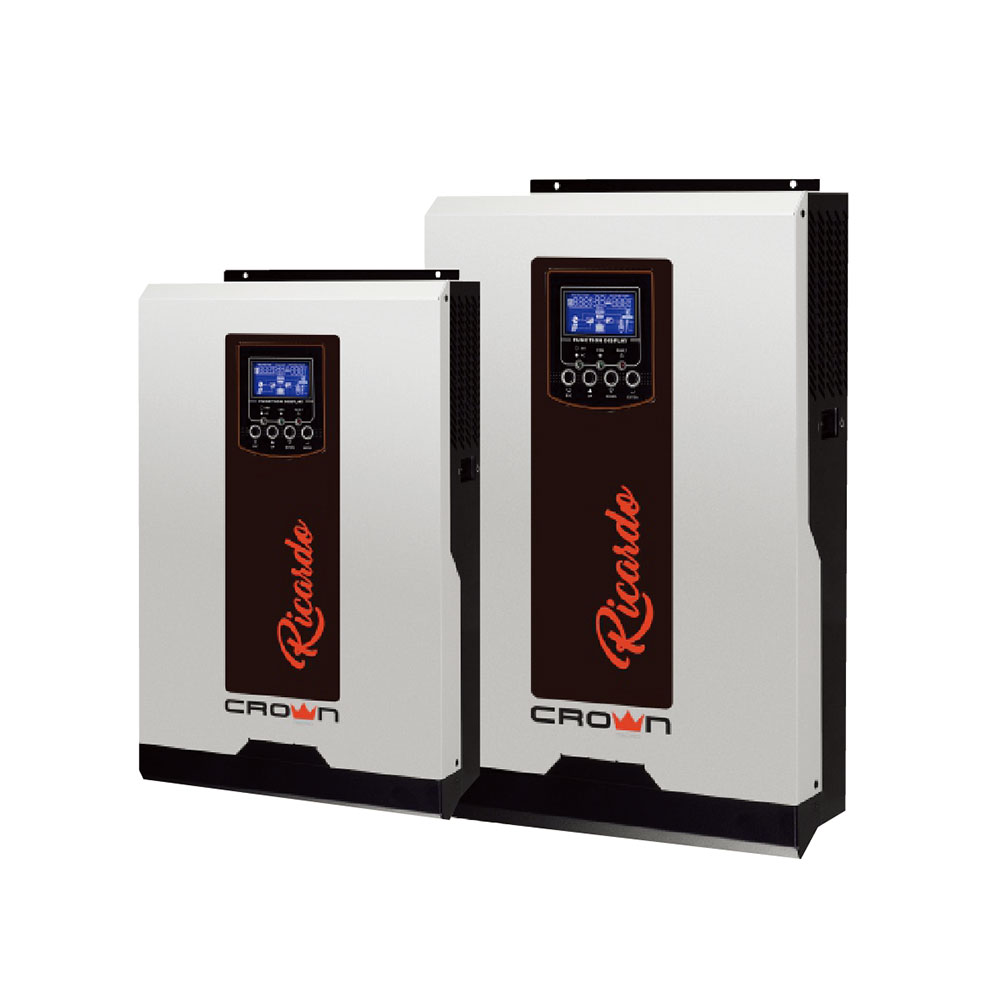

Ricardo VM-II 3-5KW

new Ricardo VM-II 3-5KW

Features:

Voltage:230VAC;
Solar Charger Type: MPPT;
Frequency Range: 50 Hz/60 Hz;
Transfer Time: 10/20 ms;
Waveform: Pure Sine wave;
Maximum PV Array Power: 4000W;
Short circuit protection;
Reserve polarity protection
Dimension: 100 x 300 x 440mm;
Operating Temperature: -10°C to 50°C.

Where to buy Compare

Instruction

Warranty 12 months

Where to buy

Service centers

Delivery

Acquire

To purchase this product and delivery methods
contact your sales specialist.
Rely on professionals!
Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

Technology

UPS type	Off-Line
Form factor	Tower

Input parameters

Power	480 VA
Current frequency	(50/60)±1Hz (Frequency self-adapt system)

Output parameters

Output voltage	220 / 230V ± 10%
Form voltage	Stepped approximation to a sinewave
Current frequency	50/60 Hz ± 1%
Switching time	2-4 ms, including the determination of the time
Automatic voltage regulation (AVR)	1 step down, two steps up

Protection and UPS equipment

Surge Protection	Yes
Overloads protectio	110% < Load percentage <120%, buzze beeps; load percentage >120%. output shuts off, buzzer beeps continuosly
Protection for UPS input	Fuse for overload protection and short circuit protection
UPS protection for short circuit	Immediate shutdown of the UPS using the input fuse
Protect the phone, fax, modem, LAN	No

Ports and interfaces

USB-port	No
SNMP-card	No

Battery

A type	Lead acid, sealed, maintenance-free
Voltage and battery capacity	12V / 4,5AH x 1
Typical recharge time	8 hours (up to full capacity of the battery)
Estimated battery backup time (at 50% load)	-
Estimated battery backup time (at 100% load)	-
Connecting additional battery	No
Cold start	Yes
Battery protection	Automatic verification of the battery and when the protection of the critical category

Physical parameters

Output connectors	1 x Euro (Schuko) + 1 x IEC (Bypass)
UPS Dimensions (W * D * B) mm	280101142 mm
Weight, kg	3.4 kg
Indication	LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
Sound alarm	Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds);†low battery level - sound beeps (last 16 seconds);†overload - a very special sound signal (every 2 seconds);

Case features

Material

Plastic

Electrical connection to the front

Power cable

Cord 1.2m

Guarantee

Standard warranty

1 year
