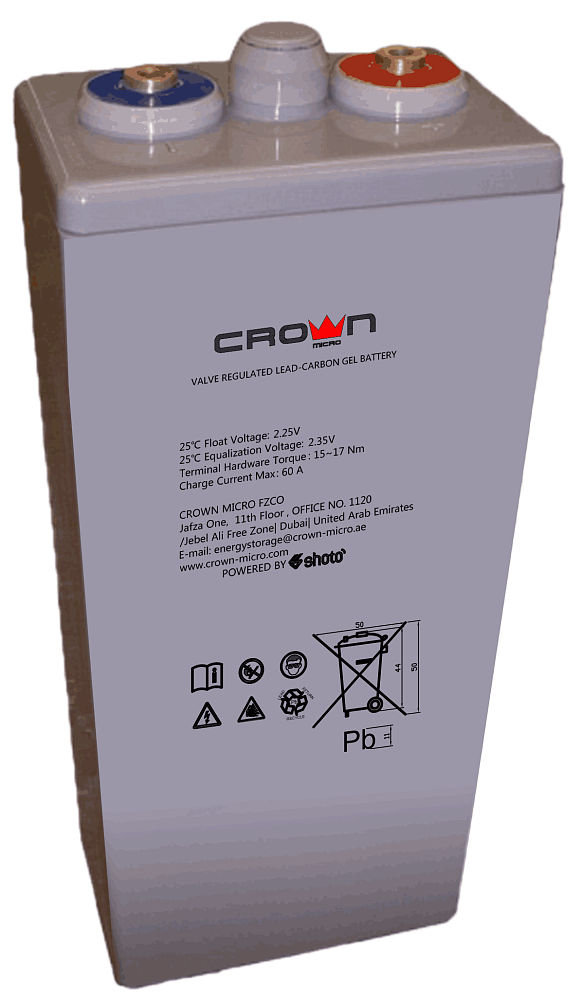

CM-GC 2V-300Ah

Applications

  • Adopt lead carbon technology
  • Special gel electrolyte without flowing to avoid acid stratification and can prolong service life
  • Excellent deep cycling performance
  • Excellent charging and discharging ability in low current



Where to buy Compare
Nominal Voltage 2 V
Capacity 300 Ah @ 10hr to 1.80V per cell @ 25˚C(77˚F)
Weight 17.5kg
Dimensions Length:124mm
Width:181mm
Height: 346mm
Total Height:365mm
Internal Resistance (full charged) 0.72mΩ
Short- circuit Current 1860A(5s)
Self Discharge @25˚C(77˚F) Less than 4% after 30 days storage
Operating Temperature Range Discharge: -40˚C~50˚C(-40˚F~122˚F)
Charge: -20˚C~45˚C(-4˚F~113˚F)
Storage: -20˚C~40˚C(-4˚F~104˚F)
Recommended Operating Temperature 15˚C~25˚C (59˚F~77˚F)
Recommended Charging Current 90A
Charging Voltage @25˚C(77˚F) Float: 2.25 V Equalize: 2.35 V
Terminal M8
Container Materials ABS/ABS(Optional)
Capacity Affected by Temperature (C10) 105 % @ 40˚C(104˚F)
85 % @ 0˚C(32˚F)
60 % @ -20˚C(-4˚F)
Design life @25°C(77˚F) 12 years
