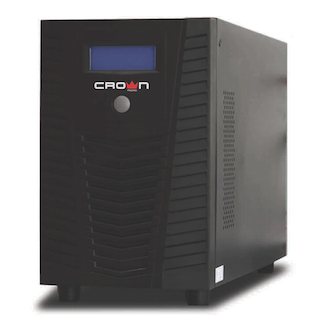

Marvel 2K

Marvel series inverters are linearly-interactive with pure sine wave output. Ability to connect a 12-volt batteries of various capacities (up to 200 Ah) provides long runtime at a low cost. This feature greatly expands the scope of the inverters and makes them indispensable for the protection of critical equipment such as a gas or a solid fuel boiler in a private home, a variety of water pumps, lighting, as well as sensitivity to other consumer electronics voltage spikes. In general, this device combines multiple functions, as the inverter, voltage stabilizer and UPS.

Features:

Microprocessor control - high reliability guarantee
Pure sine output during battery operation
Wide input voltage range adjustment
It provides stable output voltage
Ability to connect external batteries of various capacities (up to 200 AH)
Protection against short-circuit, over voltage, over temperature, overload and other interference in the input power supply combined with automatic power switch and fuse
Selection of the value of the charging current function
Suitable for all kinds of home appliances sensitive to voltage surges
Different arrangement of outlets for ease of use
Availability of digital display and LED indication
Compact size, light weight, low noise
Cold Start Function
AutoRecover operation when a voltage of the input power

Vertriebspartner

12 Monate Garantie 12 months

Vertriebspartner

Service-Center

Lieferanten

Acquire

To purchase this product and delivery methods
contact your sales specialist.
Rely on professionals!

Sales department

Presentations

Check out the range of our products in the presentation section.
If you have any questions, please contact a sales specialist.
View presentation

Technology

UPS Type

Line Interactive

Execution

Form Factor

Floor (Tower)

Input parameters

Capacity	2000 VA / 1400 W
Input voltage	220/230
Input voltage range	140 - 300
Current frequency	50/60 Hz ± 1% (auto sensing)

Output parameters

Output voltage	220 / 230V ± 10%
Form voltage	Pure Sine Wave
Current frequency	50/60 Hz ± 1%
Switching time	4 ms, including the determination of the time
Automatic voltage regulation (AVR)	1 step down, two steps up

Protection and UPS equipment

Surge Protection	Yes
UPS protection against overloads	Yes
Protection for UPS input	Fuse for overload protection and short circuit protection
UPS protection for short circuit	Immediate shutdown of the UPS using the input fuse
Protect the phone, fax, modem, LAN	No

Ports and interfaces

USB-port	Yes
SNMP-card	Optional

Accumulator battery

A type	Lead acid, sealed, maintenance-free
Voltage and battery capacity	2 pcs. Battery 12 V 7 AH to 12 V 200 AH
Typical recharge time	Depending on the connected battery
Estimated battery backup time (at 50% load)	Depending on the connected battery
Estimated battery backup time (at 100% load)	Depending on the connected battery
Connecting additional battery	no
Cold start	Yes
Battery protection	Automatic verification of the battery and when the protection of the critical category

Physical parameters

Output connectors	4 x Euro with redundant power and filtration
UPS Dimensions (W * D * B) mm	145x395x220
Weight, kg	14.0
Indication	LED (green LED - supply from the mains power, yellow LED - work redime of battery, red LED - overload or fault)
Sound alarm	Standby mode - a rare acoustic signal (1 every 5 seconds, then repeat every 60 seconds); low battery level - sound beeps (last 16 seconds);overload - a very special sound signal (every 2 seconds);

Case features

Material

Metal (0.5 mm thick)

Electrical connection to the front

Power cable

Removable c EURO plug (length 1.2 m)

Environmental Parameters

Acoustic noise	<50 dB (1 meter from the surface)
Working conditions	Humidity 0% to 90% non-condensing, temperature: 0 ~ 40 ° C

Guarantee

Standard warranty

1 year
